Description

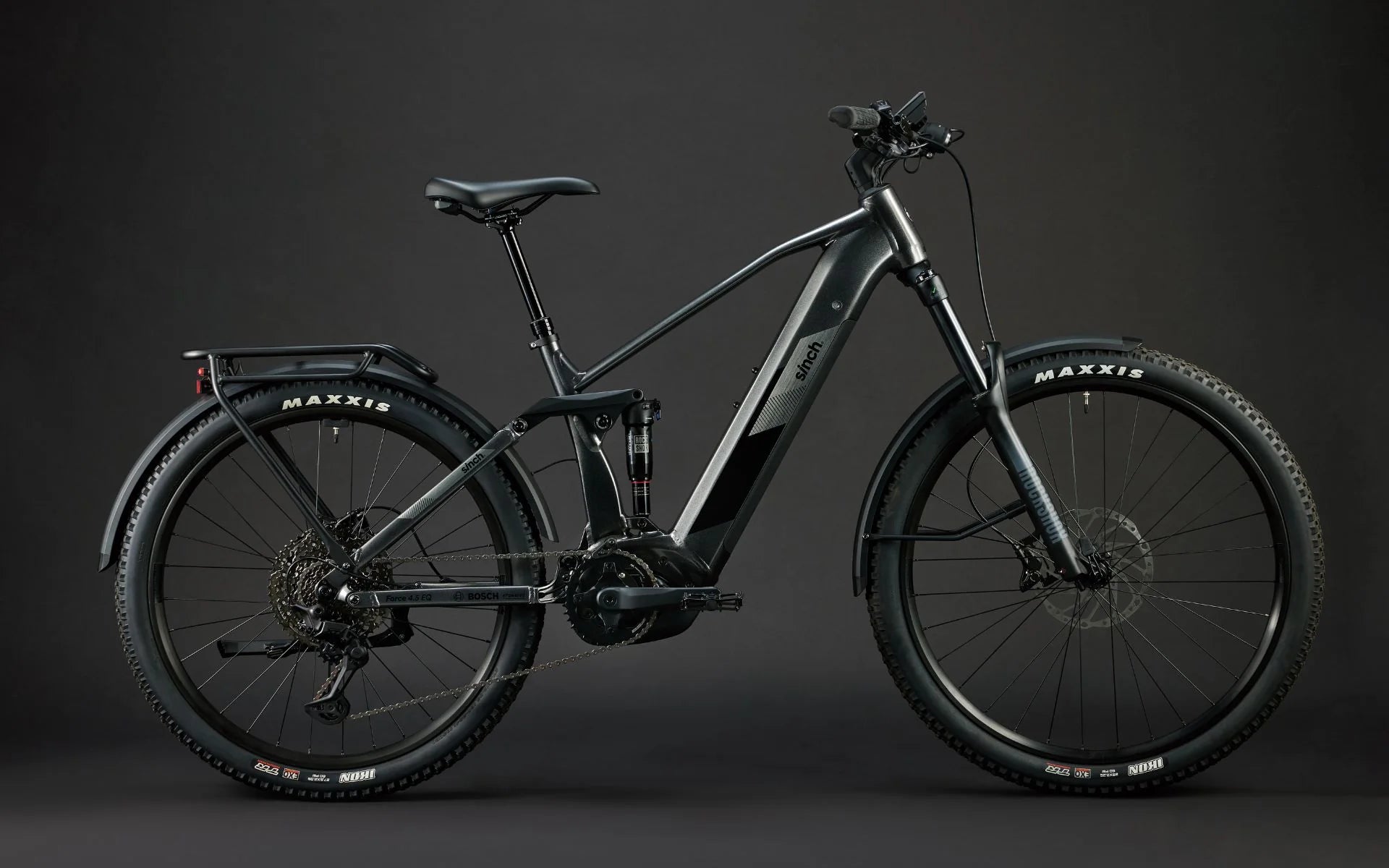

Introducing the Force 4.5 EQ: Your all-in-one SUV e-MTB full suspension boasting Mullet geometry and internal cable routing frame design. Equipped with integrated lighting, fenders, rear carrier, kickstand, and enhanced comfort. Driven by Bosch smart system technology, enjoy speeds up to 45km/hr for thrilling outdoor adventures and seamless daily commutes.

Frameset

Frame - 6061 E Bike Specific Aluminum Suspension Mullet Frame with 150mm rear travel and fully intergrated and removable Down Tube battery and internal cable management system

Front Suspension - Rock Shox 35 Silver TK Solo Air 110 x 15mm boost thru axle, 160mm travel with rebound adjust and lockout, full fender compatible

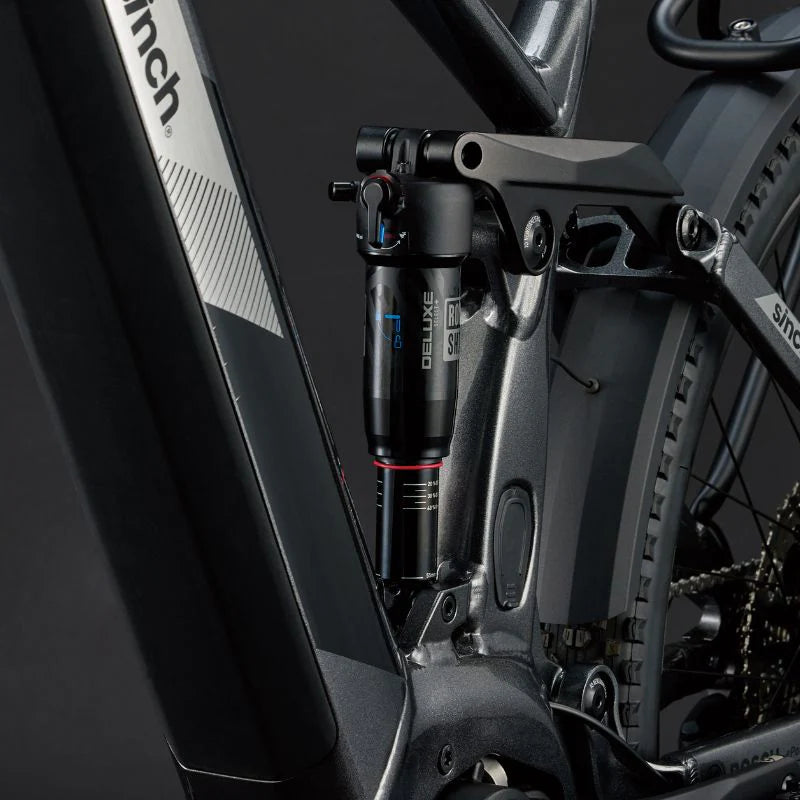

Rear Suspension - Rock Shox Deluxe Select+RL custom tuned with rebound adjust and lockout

Motor

Drive Unit - Bosch Performance Line Speed Gen 4 250watt 85Nm, 45km/hr with walk assist mode

Battery - Bosch PowerTube, 36V 16.7Ah 625Wh

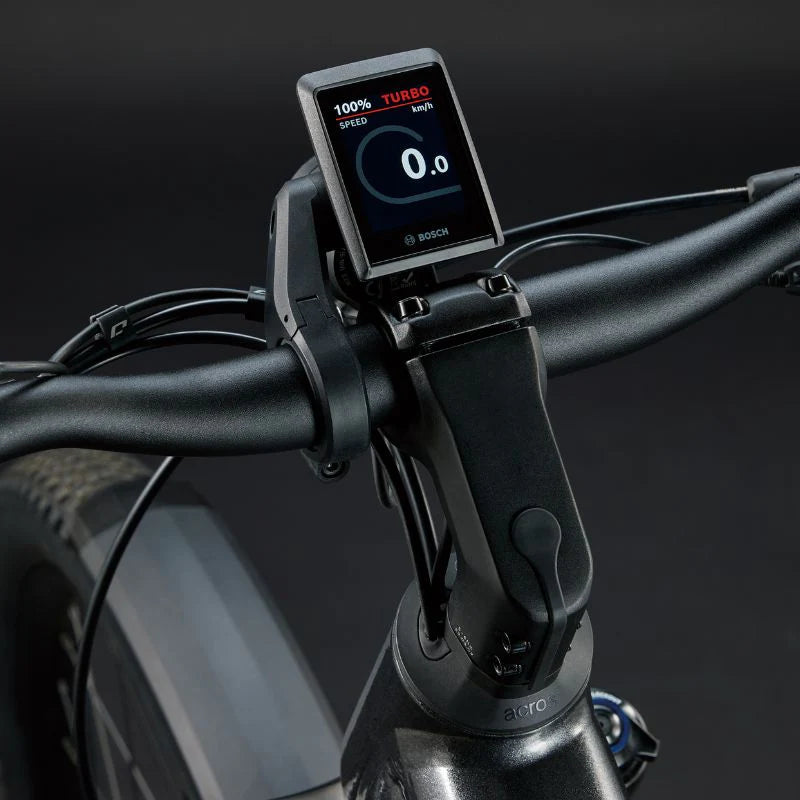

Display - Bosch Kiox 300 Controller Switch Bosch LED remote

Wheels

Hubs - Shimano TC500 Boost 110x15mm Thru axle 32H front, TC500 Boost 148x12mm Thru axle 32H rear

Rims - Alex EM30 Double Wall Front=29”, Rear=27.5” 32H F/V

Tyres - Maxxis Ikon 29x2.35” front, 27.5x2.35” rear Foldable, TR EXO puncture protection

Drivetrain

Shifter - Shimano Deore XT SL-M8130 11 Speed

Derailleur - Shimano Deore XT LinkGlide RD-M8130 SGS Shadow Plus 11 Speed

Crankset - FSA Alloy with 38T Chainring and Chain device

Cassette - Shimano Cassette LG400 LinkGlide 11-50T 11 Speed

Chain - Shimano CN-LG500 LinkGlide

Pedals - Sinch Alloy platform

Components

Brakeset - Shimano MT420 4 Piston Hydraulic disc, 203mm rotors

Saddle - Sinch Sport Comfort 177mm Gel

Seat post - Dropper, S=120, M,L=150, XL=175mm travel, Internal routing, 30.9mm

Bar - Sinch Alloy Comfort, 20mm rise, 15° sweep, 680mm

Stem - Fastback 20 31.8mm, 20-degree

Headset - Acros AZF-656 integrated

Grips - Sinch Comfort Gel Lock-on triple density
