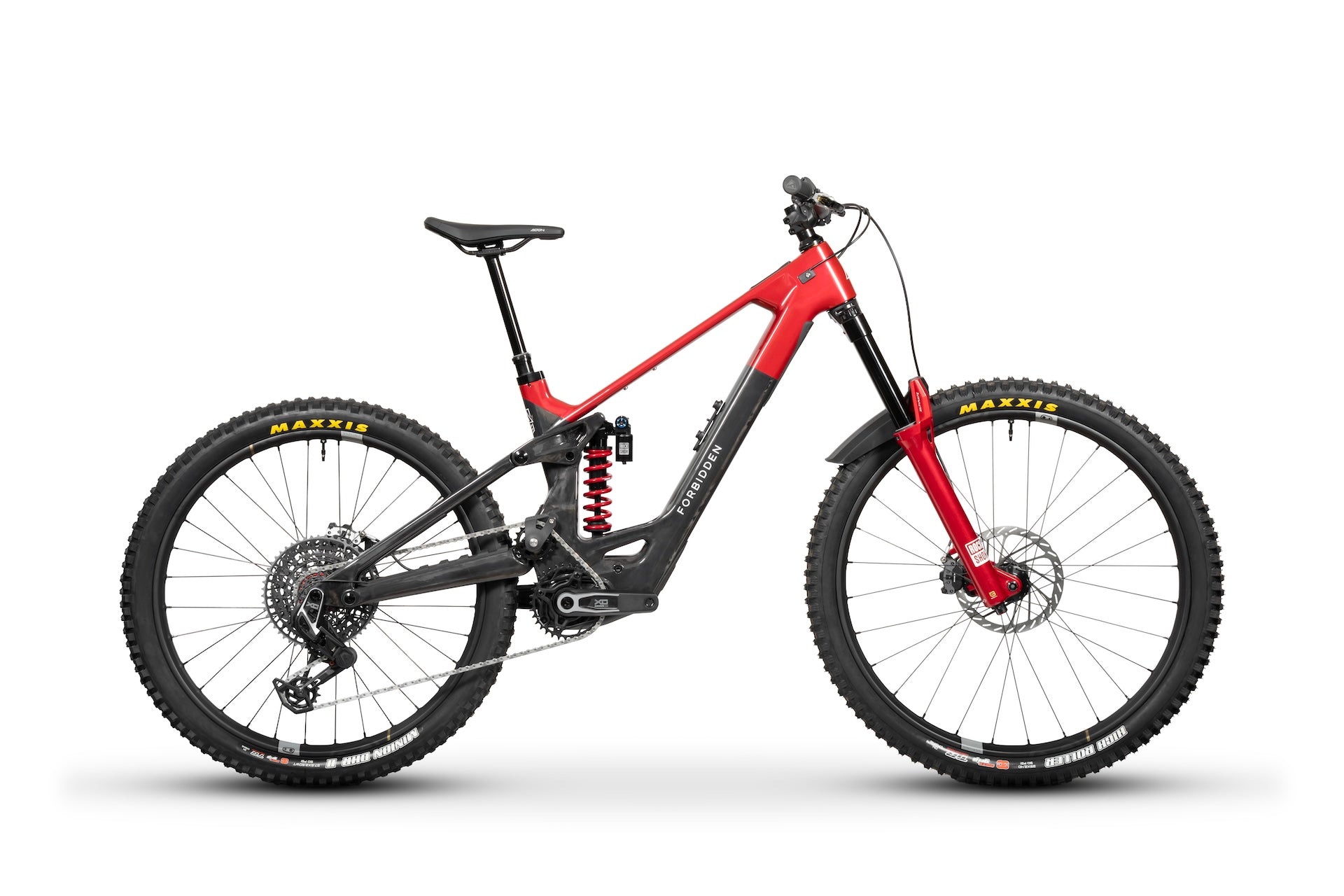

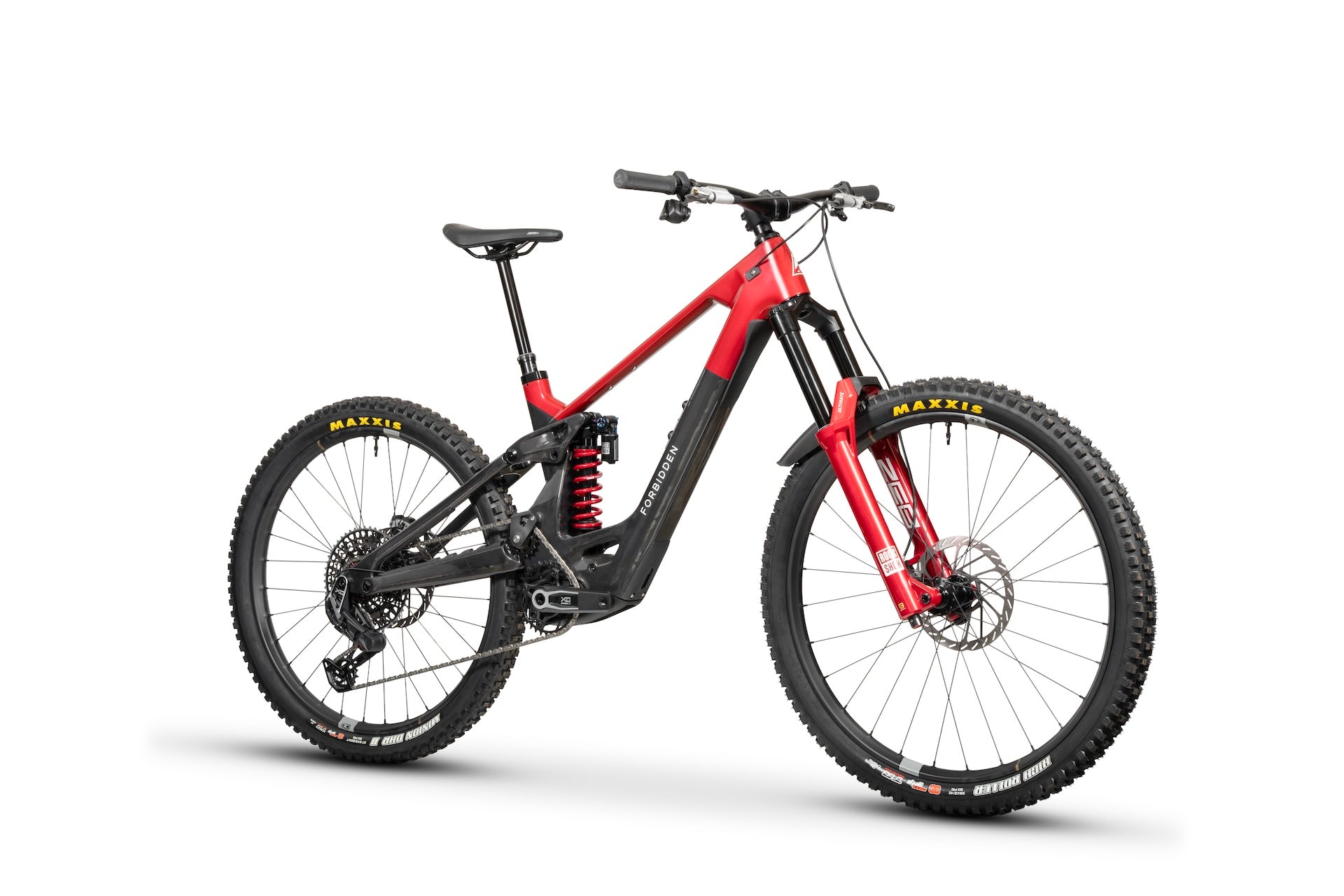

Introducing Dreadnought E. An e-MTB built from the ground up with a singular purpose – to charge through the most chaotic, rowdy lines you can find, and whisk you back to the top, asking for more. Big travel. Full power. Zero hesitation.
Featuring 170mm of rear travel paired with a 180mm fork, combined with a rearward, yet reserved axle path, Dreadnought E has the ability to plow when you drop your heels, but still offer pop and support when it’s needed to get off the ground or pump to generate that addictive speed.

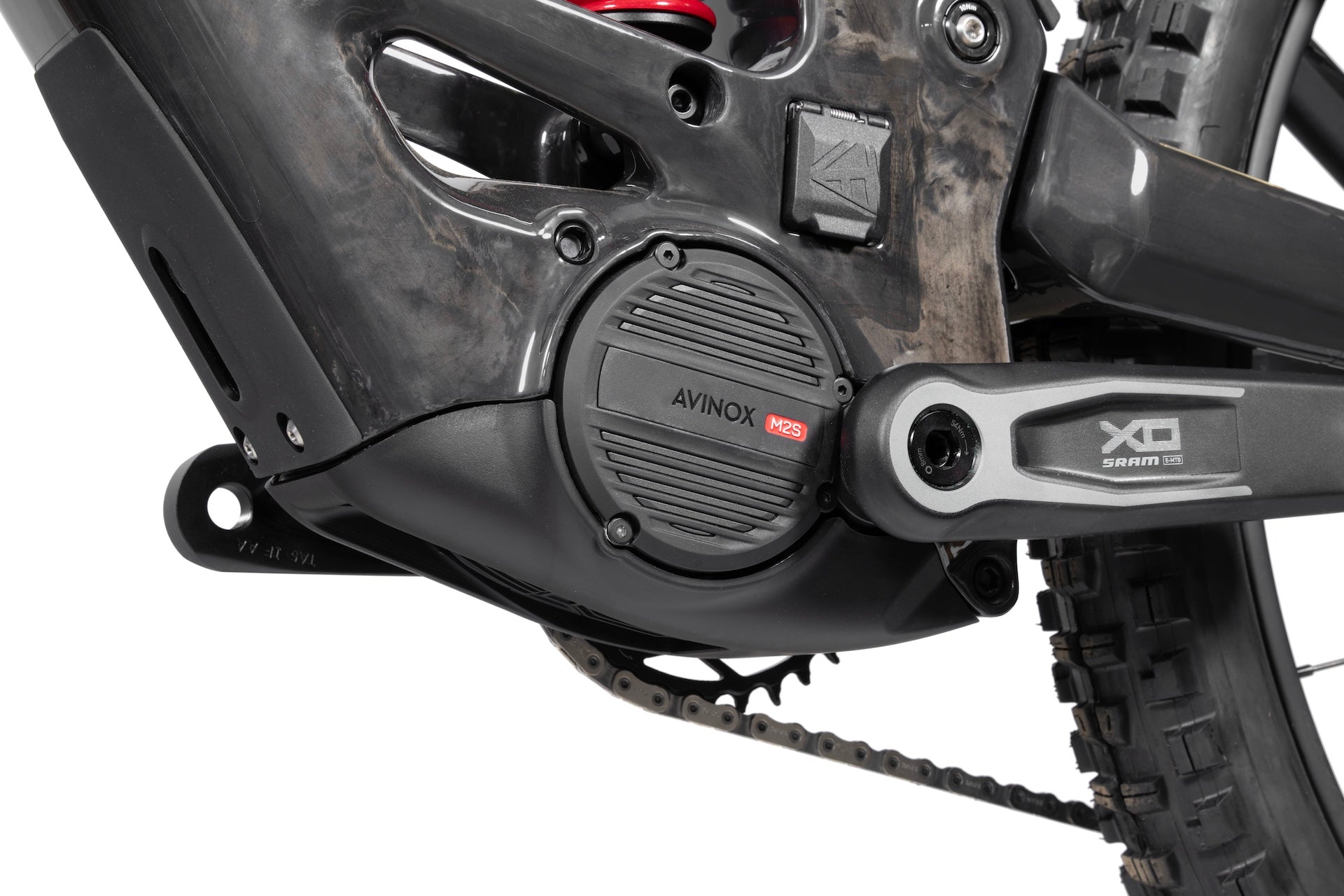

Dreadnought E is spec’d with the all-new Avinox M2 and M2S drive systems. Tier 1 and Tier 2 run the Avinox M2S, a 2.6 kg unit delivering 130 Nm of torque (150 Nm Boost) and 1300 watts. Tier 3 and Tier 4 run the Avinox M2, weighing 2.65 kg, delivering 110 Nm of torque (125 Nm Boost) and 1100 watts. Both options can be paired with 600 Wh or 800 Wh batteries, so you can choose a lighter setup or maximum range depending on how deep the mission goes.
Dreadnought E isn’t here to play nice, it’s here to go further, hit harder, and redefine what a full-power, big-travel e-MTB is supposed to feel like.
Specs:
| Frame |
Dreadnought E Full Carbon
|
| Fork |
RockShox Zeb Ultimate
|
| Rear Shock |
RockShox Vivid Coil
|
| Headset | FSA Orbit ZS |
| Grips | Forbidden |
| Handle Bar | OneUp Alloy |
| Stem | OneUp Forged |
| Seat Post | OneUp V3 |
| Seat Post Remote | OneUp V3 |
| Seat Post Clamp | Seat Clamp |
| Saddle |
Fizik Terra Aidon X5
|
| Front Brake |
SRAM Maven - Ultimate
|
| Front Brake Rotor | SRAM HS2 |
| Rear Brake |
SRAM Maven - Ultimate
|
| Rear Brake Rotor | SRAM HS2 |
| Shifter Rear |
SRAM POD Rocker
|
| Rear Derailleur |
SRAM X0 T-Type
|
| Cassette | SRAM XS-1295 |
| Chain |
SRAM GX T-Type
|
| Crankset | SRAM X0 E |
| HP Idler |
FBC Idler Pulley + Upper Guide
|
| Upper Guide |
Forbidden Race Guide
|
| Lower Guide | |
| Motor |
Avinox M2S, 130Nm, 1300w Peak Power
|
| Battery | Avinox, 800wh |
| Front Hub |
Crank Brothers Ratchet
|
| Front Hub Skewer | Maxle Stealth |
| Rear Hub |
Crank Brothers Ratchet - XD
|
| Rear Hub Skewer | Maxle Stealth |
| Spokes/Nipples | Sapim CX-Ray |
| Rims |
Crankbrothers Synthesis Carbon Enduro
|
| Front Tire |
Maxxis High Roller 3 3C, MaxxGrip, DH Casing
|
| Rear Tire |
Maxxis DHRII 3C, MaxxGrip, DH Casing
|
| Extras 1 |
Avinox 508W Charger
|
| Extras 2 |
SRAM AXS Derailleur Power Cord
|
| Extras 3 |
Fidlock TWIST Bike Base
|
| Extras 4 | Stans Sealant |
